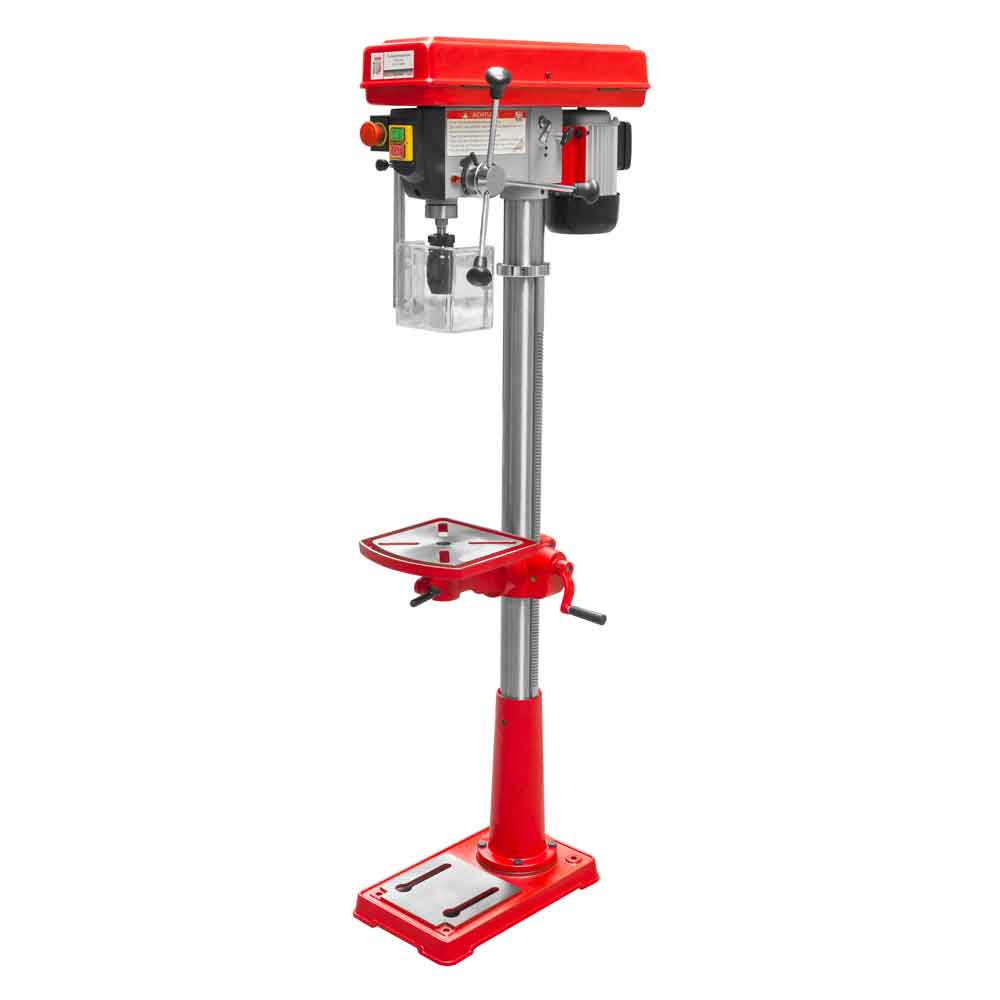

Δράπανο κολωνάτο,στιβαρή κατασκευή για μεγαλύτερη σταθερότητα διατίθεται σε 220V και 400V Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,απο το έμπειρο προσωπικό μας.
highlights
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
included in delivery: automatic chuck 1-16mm, B16
motor data
motor power s1 in W 400
motor power s6 in W 600
voltage 230V
measurements
max. height in mm 1600
outreach in mm 170
table size in mm 250×250
milling and drilling
spindle stroke in mm 80
base in mm 270×450
max. drilling performance in mm 16
drilling spindle speed in min-1 (12) 180-2740
drilling spindle collet MK2 / MT2
column diameter in mm 70
distance spindle-base in mm 1240
max. distance spindle-table in mm 750
weight
gross weight in kg 55
net weight in kg 53
packaging
packaging length in mm 1.430
packaging width in mm 510
packaging height in mm 256
general data
EAN code
9120058371523
