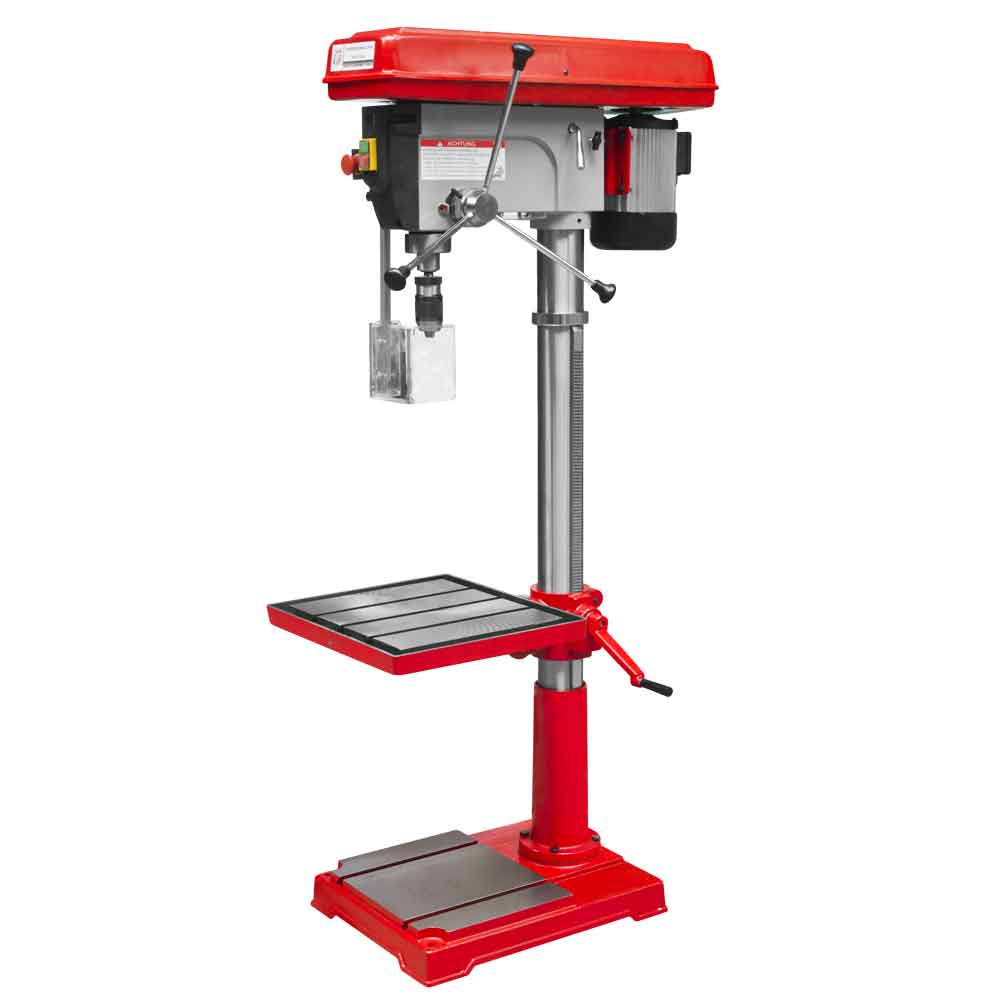

Δράπανο κολωνάτο,δεξιόστροφο και αριστερόστροφο στιβαρή κατασκευή για μεγαλύτερη σταθερότητα διατίθεται σε 400V Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,απο το έμπειρο προσωπικό μας.
- left/right rotation 2- step motor
- speed range 60-3480min-1
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
included in delivery: automatic chuck 1-16mm, B16
technical details
motor data
motor power s1 in W 700/1100
motor power s6 in W 1500/2200
voltage 400V
measurements
max. height in mm 1710
outreach in mm 257
table size in mm 475×420
total dimensions in mm 570x870x1710
milling and drilling
milling spindle speed in min-1 (24) 60-3480
milling adapter MK4 / MT4
max. drilling performance in mm 32
base in mm 580×450
spindle stroke in mm 120
distance spindle-base in mm 1160
max. distance spindle-table in mm 680
weight
gross weight in kg 125
net weight in kg 120
packaging
packaging length in mm 1.450
packaging width in mm 653
packaging height in mm 333
general data
EAN code
9120039901961
