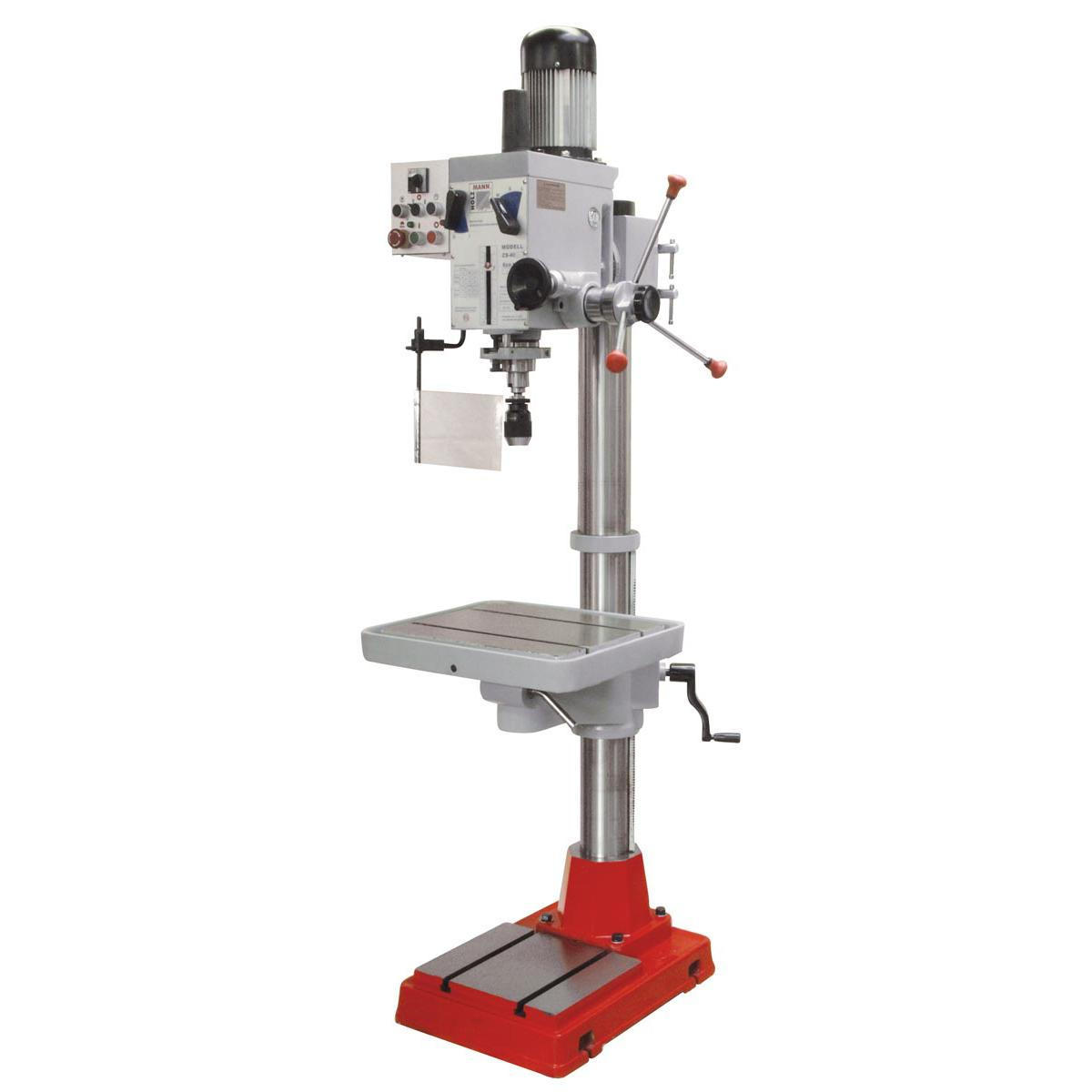

Δράπανο κολωνάτο γραναζωτό με ισχυρό μοτέρ 2 σταδίων χωρίς κραδασμούς και μεγάλο τραπέζι,τρυπάνι με δυνατότητα περιστροφής (360 °) και ρυθμιζόμενο ύψος,κεφαλή με δυνατότητα ρύθμισης ύψους και κλίσης,περιστροφικός διακόπτης (δεξιά και αριστερά).Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,απο το έμπειρο προσωπικό μας.
highlights
- largely dimensioned, height adjustable hardened and precision-ground cast iron table with 360° rotation ability around center and column
- the table is equipped with t-nut guides (14mm) to fix devices as a vice
- height adjustable and tiltable gear head delivers wide application range
- automatic tapping function and CW/CCW run as standard
- spindle sleeve downfeed via three spoke hand wheel
- permanent oil bath lubricated gear with ground and hardened gear wheels
- massive base plate featuring T-slots enables the mounting of oversize height workpieces
- powerful motor assures max. drilling performance at continuous duty
- torsion resistant column with smoothed surface
- height adjustable spindle protection with microswitch for your safety
- fine infeed via precision wheel positioned at machine front with depth scale indication
included in delivery: drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12
technical details
motor data
motor power s1 in W 1100
motor power s6 in W 1500
voltage 400V
measurements
max. height in mm 2120
outreach in mm 272.5
table size in mm 575×354
milling and drilling
distance spindle-base in mm1230
column diameter in mm 115
quill travel 120
max. drilling performance in mm 40
milling spindle speed in min-1 95-1600
drilling spindle collet MK4 / MT4
max. distance spindle-table in mm 380
weight
gross weight in kg 350
net weight in kg 310
packaging
packaging length in mm 640
packaging width in mm 720
packaging height in mm 1.910
general data
EAN code 9120039900995
