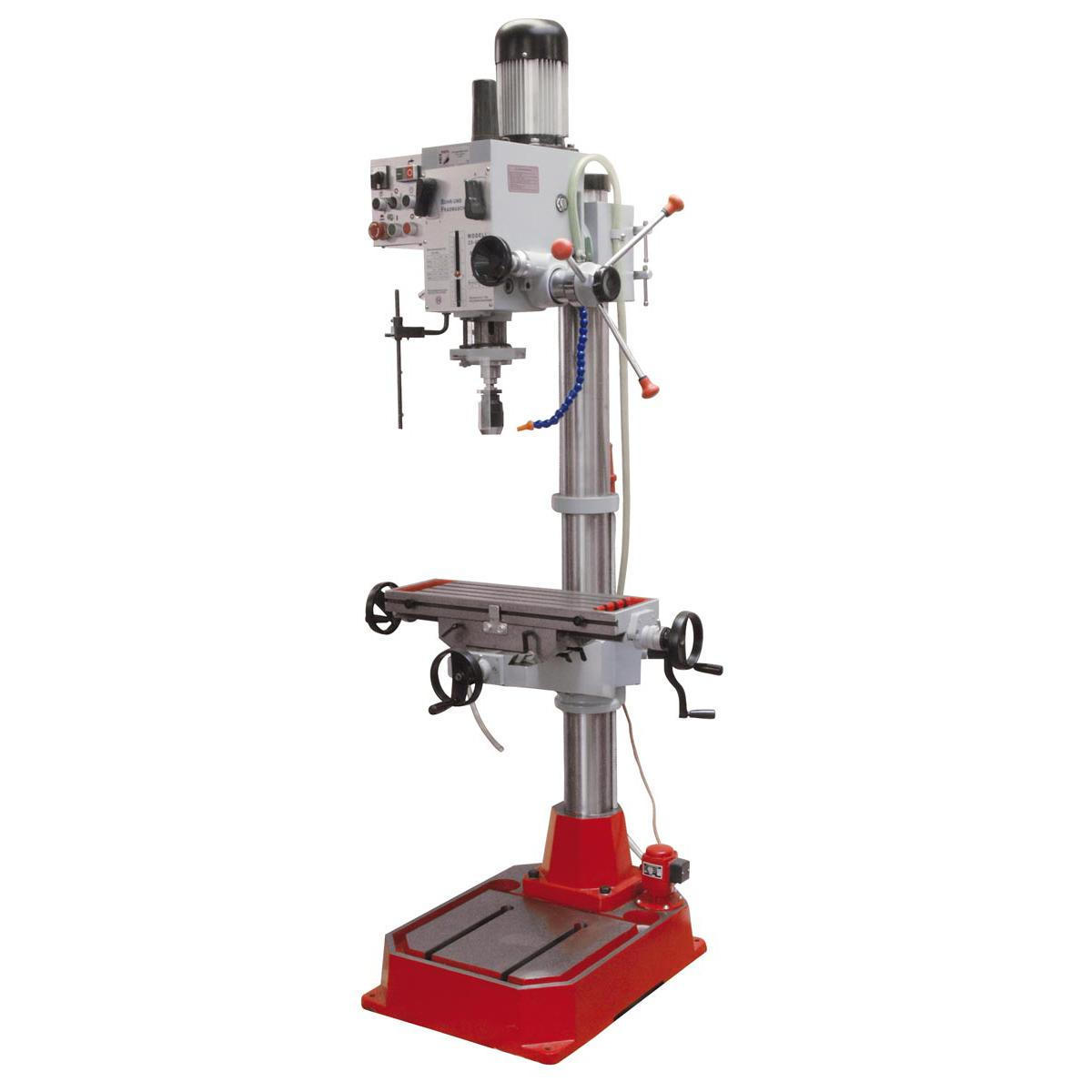

Δράπανο κολωνάτο γραναζωτό με ισχυρό μοτέρ κεφαλή με δυνατότητα ρύθμισης ύψους και κλίσης παρέχει ευρύ φάσμα εφαρμογών,με σταυρωτό τραπέζι και αντλία ψύξης, λειτουργία αυτόματης κοπής.Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,απο το έμπειρο προσωπικό μας.
highlights
- with cross table with cooling pump
- massive base plate featuring T-slots enables the mounting of oversize height workpieces
- the cross table is equipped with t-nut guides (14mm) to fix devices as a vice
- spindle sleeve feed via three spoke hand lever
- height adjustable spindle protection with microswitch for your safety
- cooling system included in delivery
- height adjustable and tiltable gear head delivers wide application range
- automatic tapping function and CW/CCW run included in delivery
- fine infeed via precision wheel positioned at machine front, with depth scale indication
- permanent oil bath lubricated gear with ground and hardened gear wheels
- powerful motor assures max. performance even at heavy duty
included in delivery: drill chuck 16mm, reducing sleeve MT4/3, MT3/2, wedge, drawbar M12
technical details
motor data
motor power s1 in W 1100
motor power s6 in W 1500
voltage 400V
measurements
outreach in mm 272.5
max. height in mm 2160
table size in mm 190×585
milling and drilling
distance spindle-base in mm 1270
column diameter in mm 115
quill travel 120
max. drilling performance in mm 40
milling spindle speed in min-1 95-1600
drilling spindle collet MK4 / MT4
max. distance spindle-table in mm 754
weight
gross weight in kg 375
net weight in kg 335
packaging
packaging length in mm 720
packaging width in mm 740
packaging height in mm 1.910
general data
EAN code 9120039901008
