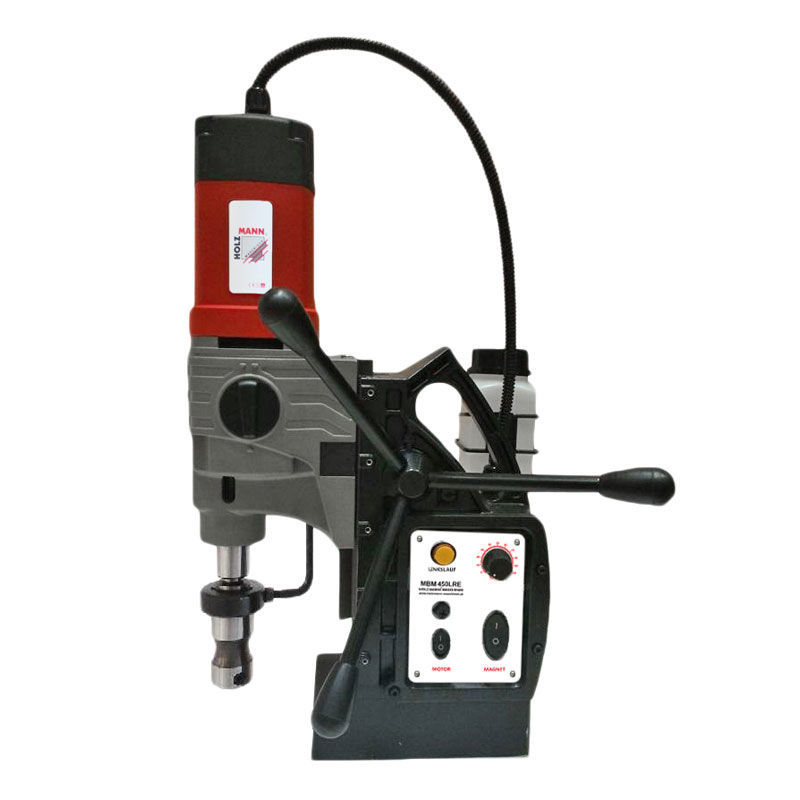

Μαγνητικό δράπανο για ποτηροτρύπανα εως Φ 22..Αυστριακής προέλευσης.
highlights
- For tapping- and threaded hole
- perfrect for treatment of bulky steel workpieces
- Enables mobile treatment with precise guide
- As well for vertical drilling – effective and und accurate
- Through acitivation of the electromagnet the drilling machine can be clamped to every steel part. No shifting!
- The magnet gives safty during overhead work.
- Gladly applied at the building industry, bridge- and und shipbuilding
- Multifunctional unit with right and left run, adjustable speed, speed control and thread cutter.
technical details
motor data
motor power s1 in W 1650
voltage 230V / 50 Hz
speed in min-1 100-250 / 180-450
general planing
spiral drill max. drilling depth in mm 110
technical specification
core drill max. drilling depth in mm 35
spiral drill max. Ø in mm 19
weldon shankMK2 /MT2
magnetic force in N 15000
max. countersunk-head Ø in mm 22
magnet base in mm 170x80x50
max. thread size M18
core drill max. Ø in mm 45
distance quick release tool holder to base in mm 240
weight
gross weight in kg 14
net weight in kg 12
packaging
packaging width in mm 370
packaging height in mm 180
general data
EAN code
9120058371608
