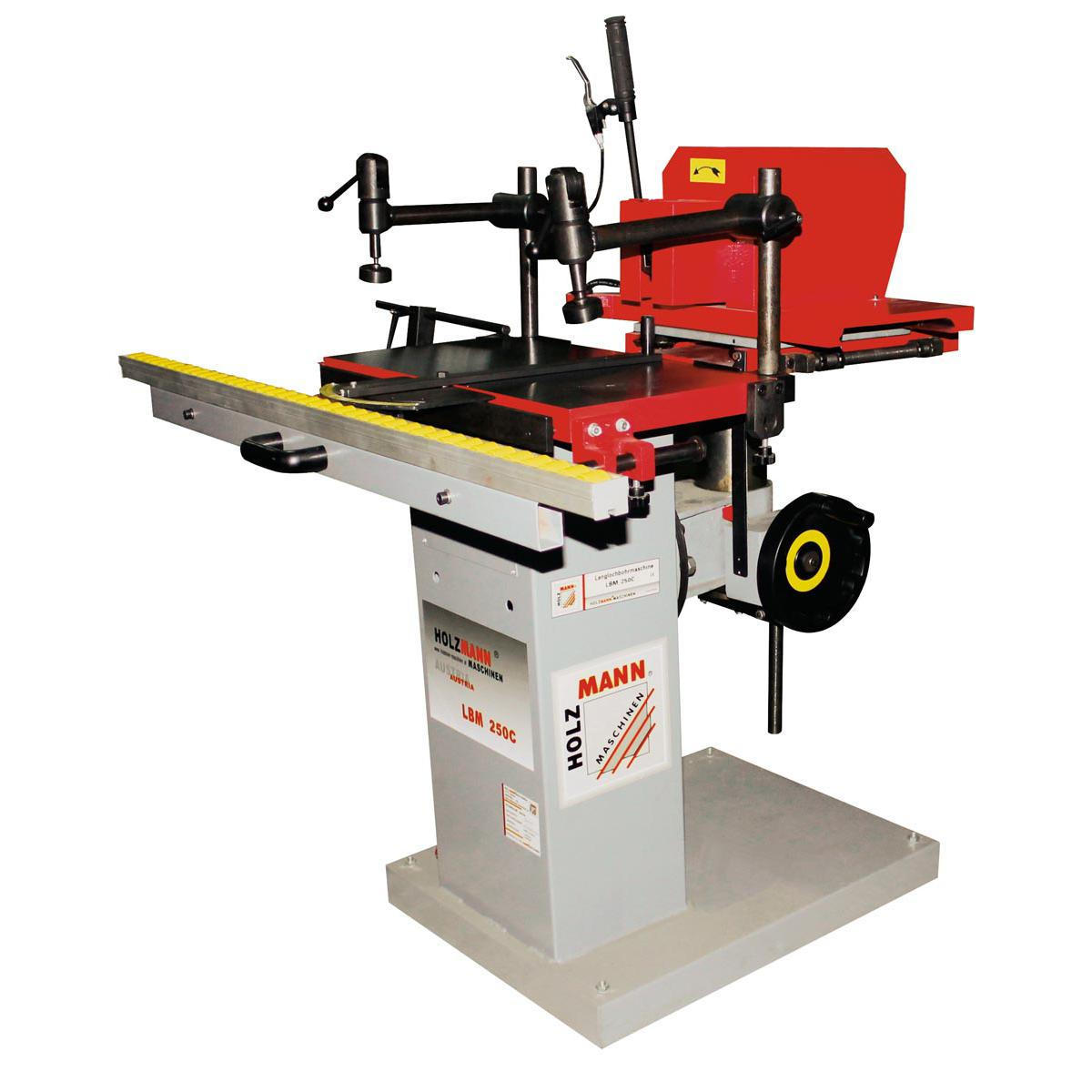

Μορσοτρύπανο με βάση στοιβαρή κατασκευή,αριστερόστροφη και δεξιόστροφη κίνηση τρυπανιού, τσοκ τρυπανιού 16 mm,περιλαβάνεται ραουλιέρα,διατίθεται σε 380v.Αυστριακής προέλευσης.
highlights
- solid non-twistable grey cast iron machine for highly accurate work
- inclined slotted holes and precision drills easily doable
- drilling head pivoting left and right
- comfortable one hand operation feasible
- huge operating range
- pin drilling device with 4 different defined positions (16-22-25-32mm)
- adjustable end stops for transversal and longitudinal operation
- easy and comfortable height adjustment via hand wheel
- integrated phase turn over device
- mitre gauge and extractable table included
included in delivery: mitre fence, 2pcs eccentric clamps, Wescott drill chuck 0-20mm, motor protection, extractable table, pin drilling device
technical details
motor data
motor power s6 in W 3100
motor power s1 in W2200
voltage 400V
measurements
table stroke in mm 155
table size in mm 600×320
drilling wood
max. drilling width in mm 250
pin point distances in mm 16/22/25/32
max. drilling depth in mm 215
weight
net weight in kg 205
gross weight in kg 240
packaging
packaging height in mm 1.260
packaging width in mm 740
packaging length in mm 1.000
general data
EAN code
9120039904139
