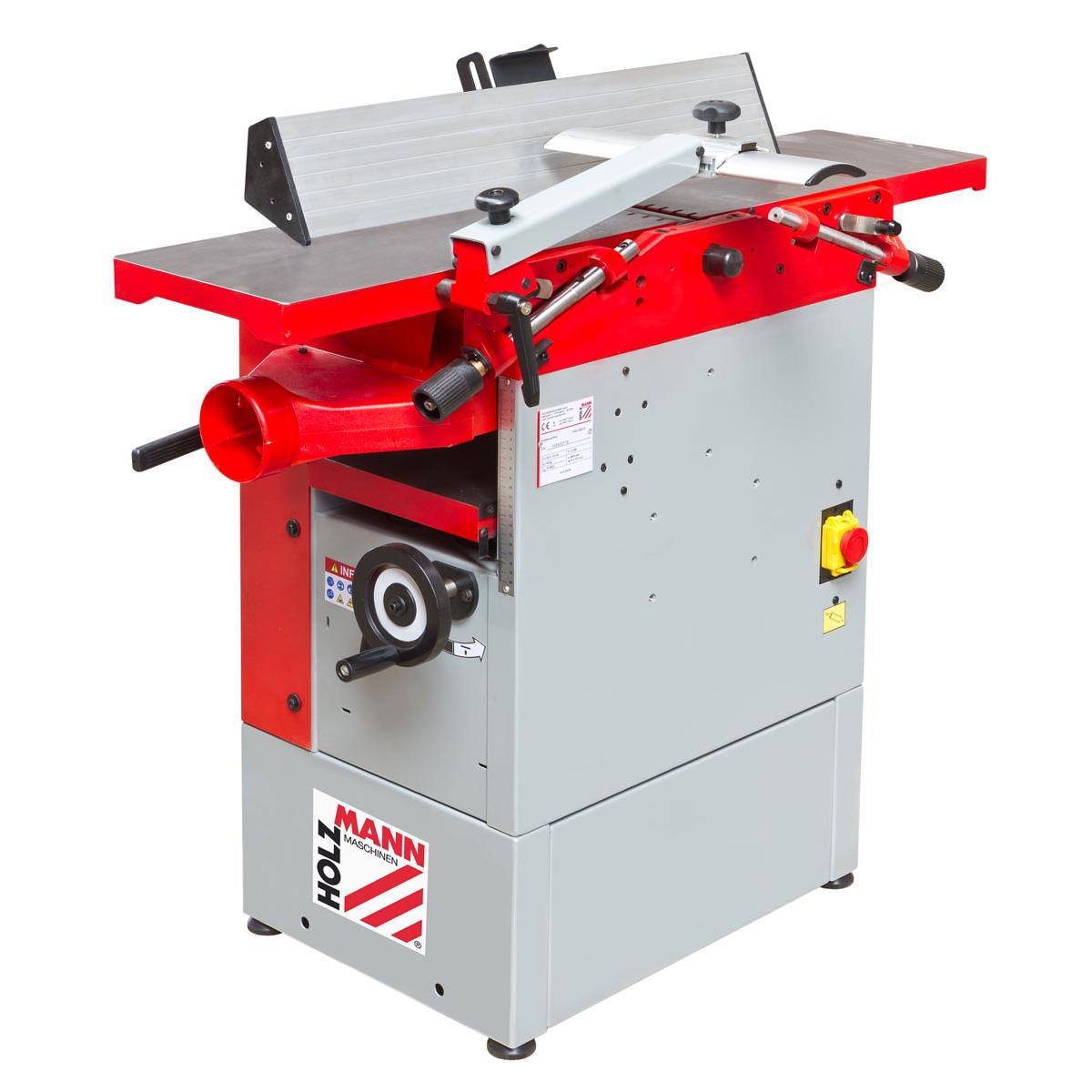

Ισχυρή πλανοξεχονδριστήρα απο χυτοσίδηρο με 3 μαχαίρια κοπής,τα οποία συμπεριλαμβάνονται,με υποδοχή αναρόφησης διατίθεται σε 220v και σε 400v.Machine Austria.
Τεχνική υποστήριξη servis-ανταλλακτικά τρόχισμα μαχαιριών απο το έμπειρο προσωπικό μας.
Δώρο 1 σετ μαχαίρια πλάνης αξίας 49,00 ευρώ.
highlights
- solid cabinet base unit ensures high stability

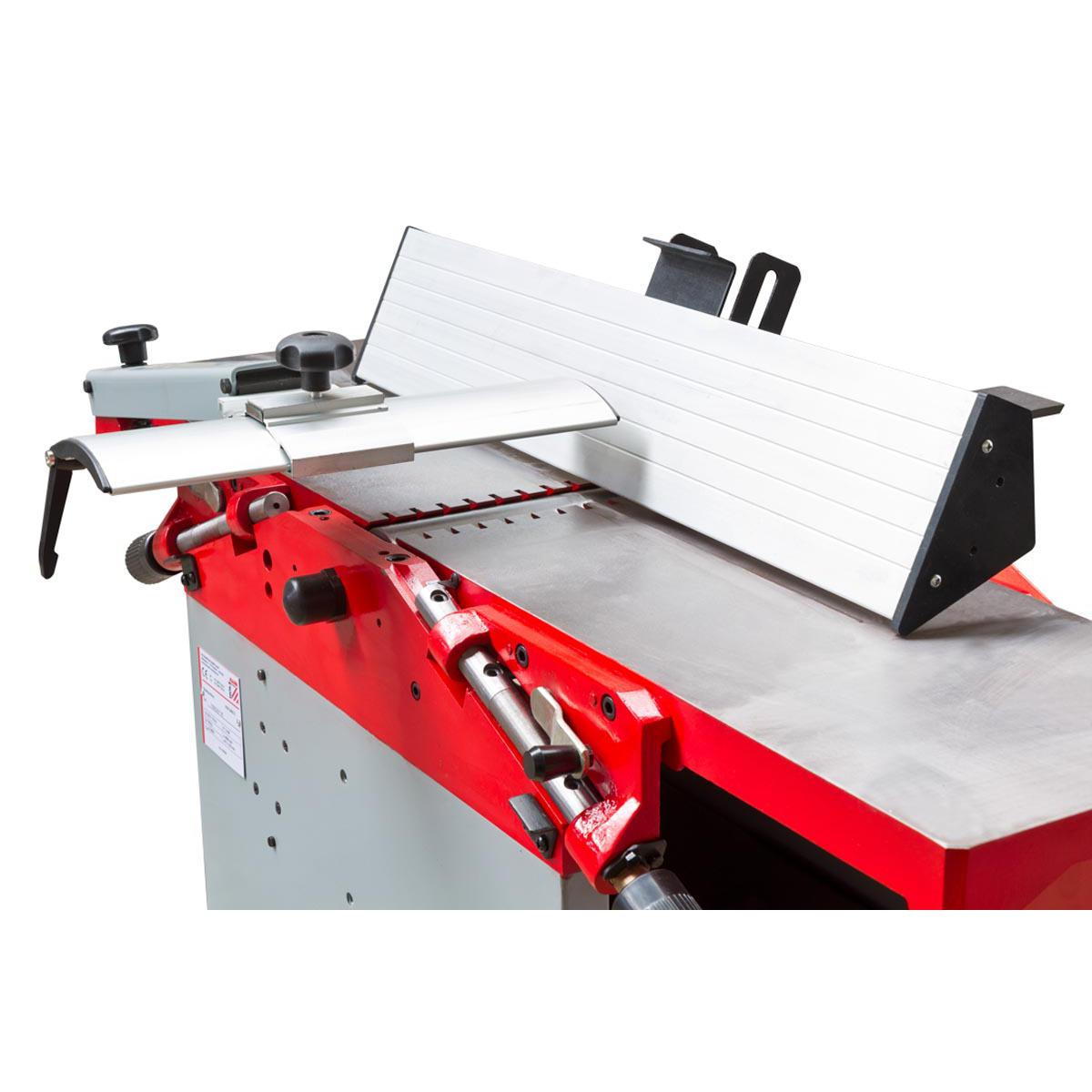

- adjustable aluminium fence, 3-knife cutterblock
- collateral pivoting grey cast iron tables enable
- comfortable thicknessing
- dust collector plug allows a dust and chip-free workig environment
included in delivery: resharpenable planer knives (3pcs) (250x30x3mm),fence, operating tools, shaft cover
technical details
planing
max. thicknessing cutting depth in mm 3
planer fence in mm 700×130
fence tilt 90-45°
planing table size in mm 1085×256
motor data
motor power s1 in W1500
motor power s6 in W2100
feed speed 5.5
voltage 230V / 50Hz
measurements
total dimensions in mm
1084x472x1050
table height in mm 850
suction port in mm 100
workpiece measurements
min. workpiece thickness in mm 6
max. workpiece thickness in mm 195
thicknessing
table size in mm 245×590
cutting depth in mm 2
general planing
shaft diameter in mm 75
shaft speed in min-14000
cutter knives amount 3
volume level and vibration
sound power level in dB(A) 93
weight
net weight in kg 140
gross weight in kg 165
packaging
packaging height in mm 750
packaging width in mm 490
packaging length in mm 1.150
general data
EAN code 9120058373749
