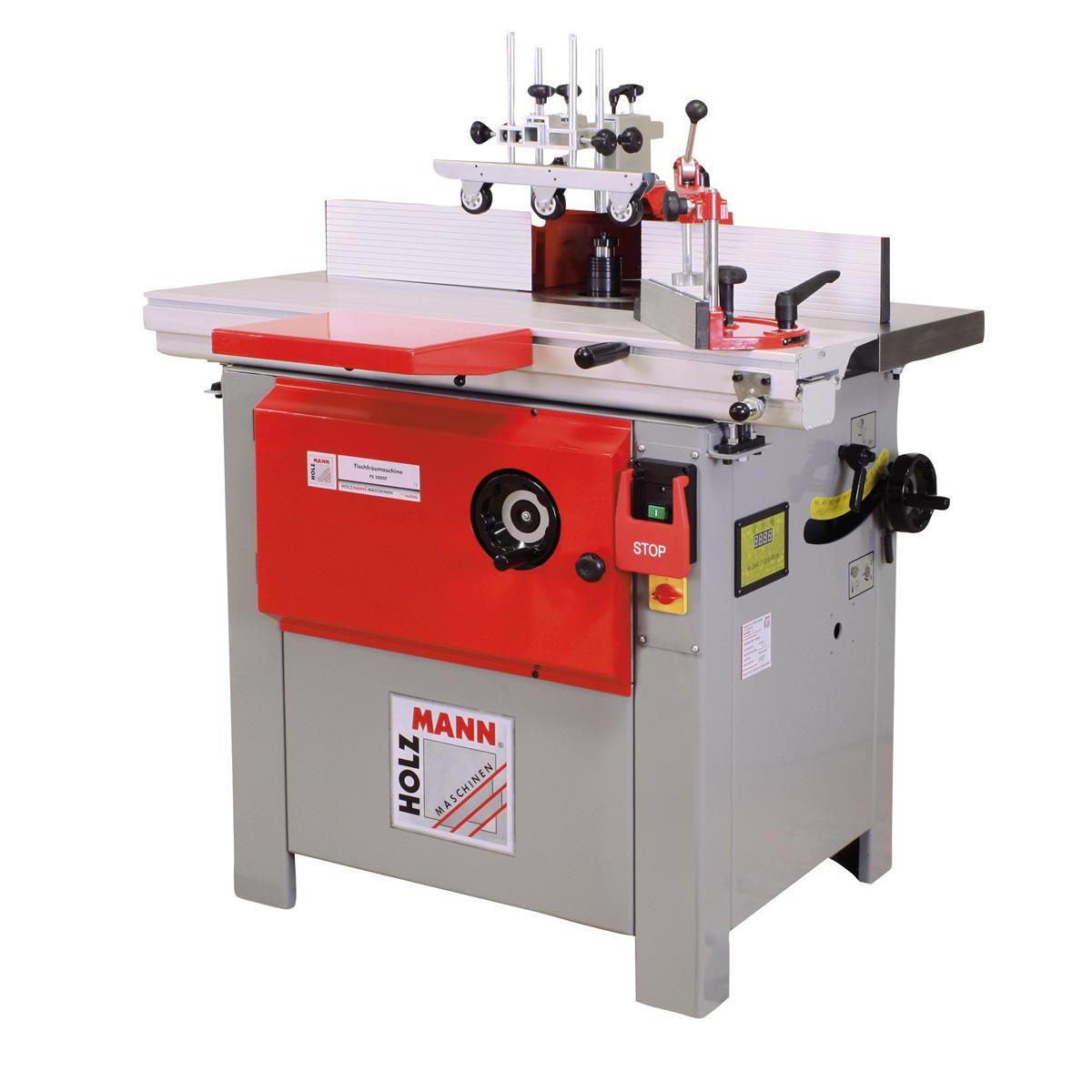

Ξυλουργική σβούρα FS200SF HOLZMANN.Διατίθεται σε 220V και 380V με σπαστό άξονα 0° +45° FS200SF_400V FS200SF_230V
Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,ανταλλακτικά τρόχισμα κοπτικών απο το έμπειρο προσωπικό μας.
highlights:
– massive and torsion-resistant, ground grey cast iron table.
– smoothly running aluminium sliding table (250mm width) with extension table (+ 250mm width).
– 4 spindle speeds, maintenance cover positioned at frontside of the machine for convenient speed change.
– Spindle tilts backwards – up to 45°
– HQ shaper fence with guiding-rollers ensures an exact workpiece feeding.
– Electric spindle speed indication via LCD
– Spindle-lock lever positioned at machine side for fast and convenient cutter head change.
– Dust extraction plug diameter: 100mm
– included in delivery: Table extension, spindle shaper guard, angle gauge incl. workpiece clamp, spindle shaper hood
technical details:
motor data:
motor power s1 in W: 2800
motor power s6 in W: 3750
voltage:220V / 400V
measurements:
sliding table in mm: 1000×250
table height in mm: 900
table size in mm: 1000×360
milling and drilling:
table opening in mm: 200
max. tool diameter below table in mm: 180
milling spindle swivel: 0° +45°
max. clamping height in mm: 100
spindle stroke in mm: 100
milling spindle speed in min-1: 1800/3000/6000/9000
milling spindle diameter in mm: 30
mitre fence in mm: 360×120
max. tool diameter above table: 180
weight:
gross weight in kg: 260
net weight in kg: 218
packaging:
length in mm: 1.150
width in mm: 730
height in mm: 1.200
general data:
EAN code:
9120039900957
