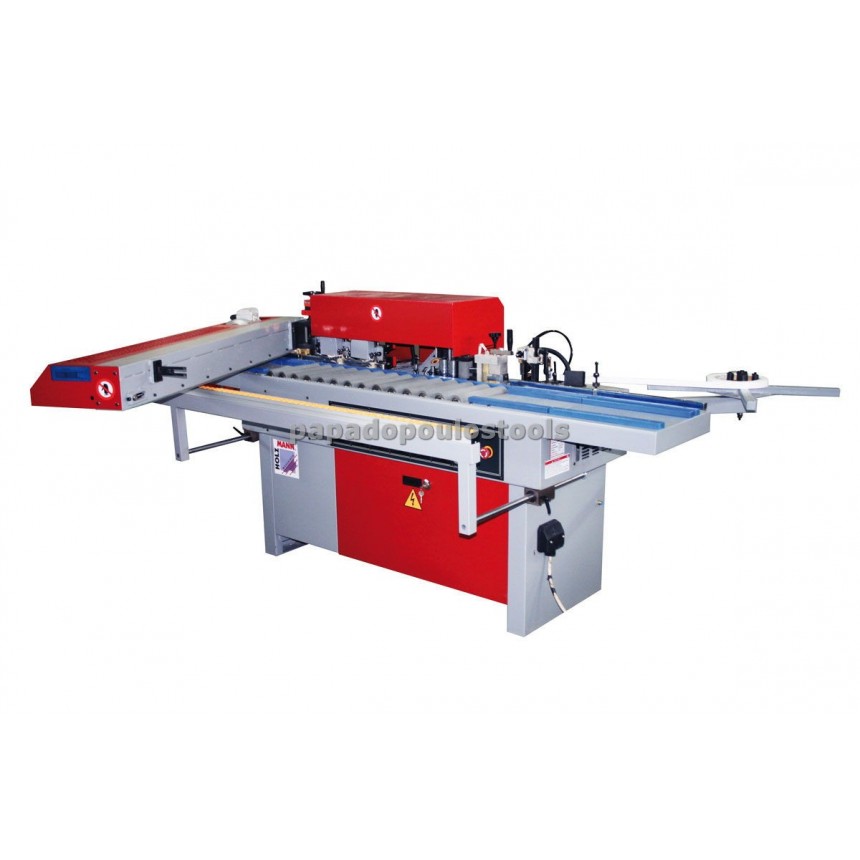

Συγκολλητική περιθωρίων pvc αυτόματη,με οθόνη LCD που ελέγχει τη ρύθμιση θερμοκρασίας κόλλας,ισχύς κινητήρα 2740W,ταχύτητα τροφοδοσίας 6.4 m/min,υποδοχή αναρρόφησης 100mm,μέγεθος τραπεζιού 2300×800 mm
συνολικές διαστάσεις: 2050x800x1070 mm,ελάχιστο μήκος υλικού 280mm,μέγιστο πάχος υλικού 45mm,ελάχιστο πάχος υλικού 10mm,ελάχιστο πλάτος υλικού 90mm,θερμοκρασία εργασίας 190-200 °C,απαιτούμενη πίεση αέρα 7 bar,πλάτος pvc 12-48 mm,πάχος pvc 0,4-3 mm,καθαρό βάρος 400kg.
Αυστριακής προέλευσης.
highlights
- Automatic and precise glueing procedure as well as integrated double finishing R side as well as integrated end cutting unit and buffing unit within one workflow.
- The machine profiles the egde by two trimming units. The profile knives can be adjusted after each use or replaced.
- one-sided automatic edge banding machine
- glue transfer directly to straight workpieces
- stand by function (prevents to burn the glue
- unit adjustment equipped with counter block for setting different edge types
- LCD display controls glue temperature adjustment
technical details
motor data
motor power s1 in W 2740
feed speed 6.4 m/min
measurements
total dimensions in mm 2050x800x1070
table size in mm 2300×800
suction port in mm 100
workpiece measurements
min. workpiece thickness in mm 10
max. workpiece thickness in mm 45
min. workpiece length in mm 280
min. workpiece width in mm 90
edge banding
edge thickness in mm 0,4-3
edge width in mm 12-48
required air pressure in bar 7
working temperature in °C 190-200
weight
net weight in kg 400
gross weight in kg 450
packaging
packaging height in mm 1.060
packaging width in mm 760
packaging length in mm 1.690
general data
EAN code
9120039904801
