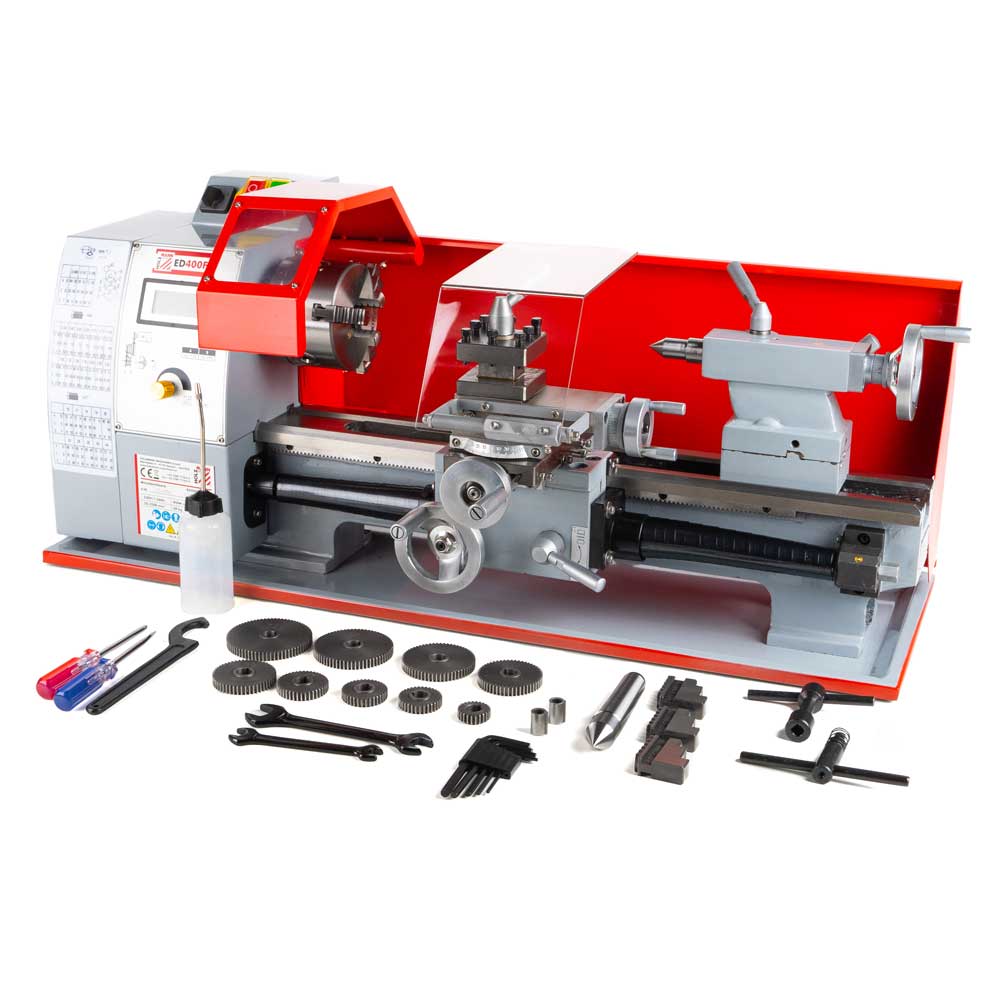

Τόρνος ED400FD_230V * μεταβαλλόμενης ταχύτητας (Vario) με δυνατότητα κοπής σπειρωμάτων και αυτόματη διαμήκη πρόωση. Μεγάλη ακρίβεια περιστροφής της ατράκτου (< 0,009 mm) και ηλεκτρονικό πάνελ ελέγχου ρυθμού περιστροφής. Έρχεται με επιπλέον γρανάζια παρέχοντας ένα εξαιρετικά ευρύ φάσμα κοπής σπειρωμάτων. Με κίνηση μέσω ιμάντων τύπου V που εξασφαλίζουν ομαλή λειτουργία για χρόνια. Κινητήρας που δεν απαιτεί συντήρηση και εξασφαλίζει σταθερή ροπή. Με εξαρτήματα στην συσκευασία.Αυστριακής προέλευσης.
highlights
- serially equipped with leadscrew for thread cutting and automatic longitudinal feed
- induction-hardened and precision ground prismatic bed way guides
- hardened main spindle bedded with adjustable taper roll bearings
- high spindle centricity (< 0,009 mm) assures maximal turning accuracy
- spindle speed steplessly adjustable, speed can be read off conveniently from digital speed display
- comes with change gears delivering an exceptionally broad thread cutting range
- guides conveniently adjustable via V-ledges ensuring precision for many years
- powerful, maintenance free motor with undervoltage release
- smooth power transmission delivers constant torque
- tailstock can be adjusted for taper turning
- CW/CCW run mode
- Note: Machine runs at half speed when reversing.
included in delivery: 3-jaw chuck Ø 100mm, 4-way tool post, dead center MT3, dead center MT2, chuck guard, chip tray, change gears, tools
technical details
motor data
motor power s1 in W 450
voltage 230V
measurements
bed width in mm 100
total dimensions in mm
930x390x370
turning machines
range of metric threads in mm/r (18 S) 0,5-3
lathe spindle speed in min-1 50-2500
max. swing over cross slide in mm 110
range of inch threads 8-44
tailstock cone
MK2/MT2
spindle nose mount
MK3/MT3
spindle bore in mm 21
carriage travel in mm 80
tailstock sleeve travel 55
cross slide travel in mm 80
compound slide travel in mm 85
distance between centers in mm 400
max. swing over bed in mm 210
weight
gross weight in kg75
net weight in kg68
packaging
packaging length in mm900
packaging width in mm 450
packaging height in mm 460
general data
EAN code
9120039901329
