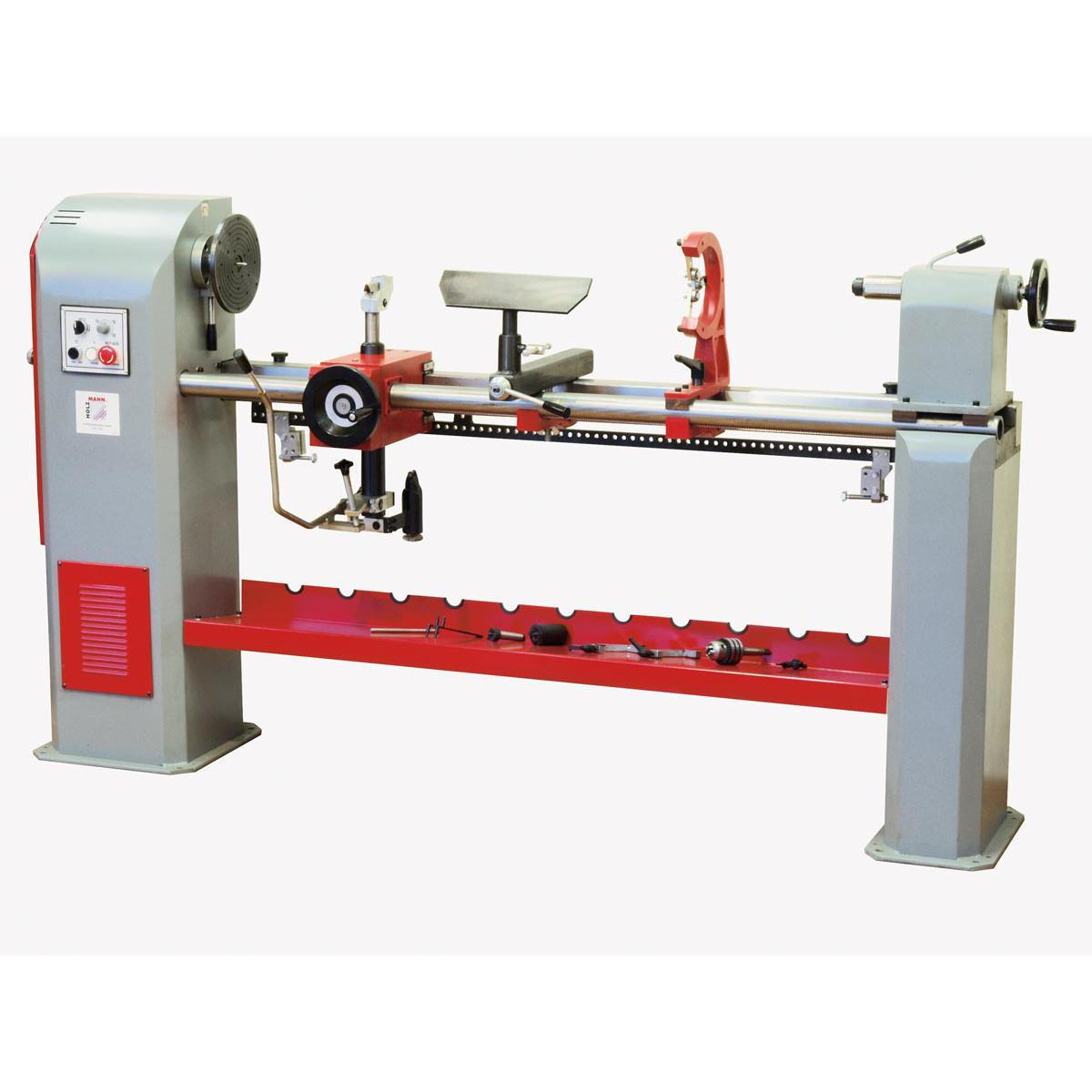

Ξυλότορνος DBK1300 με αντιγραφικό διατίθεται σε 220V και 380V.Αυστριακής προέλευσης.
Τεχνική υποστήριξη servis-ανταλλακτικά απο το έμπειρο προσωπικό μας.
Δώρο κοπτικά τόρνου ΣΕΤ 8 τεμ SERIES:F551556 chisel set 8pcs αξίας 120.00 Ευρώ
highlights:
– solid and torsion-resistant steel build-up
– easy one hand operation with eccentric clamp system
– solid tail stock with double guide system
– tailstock with M33 and MT2

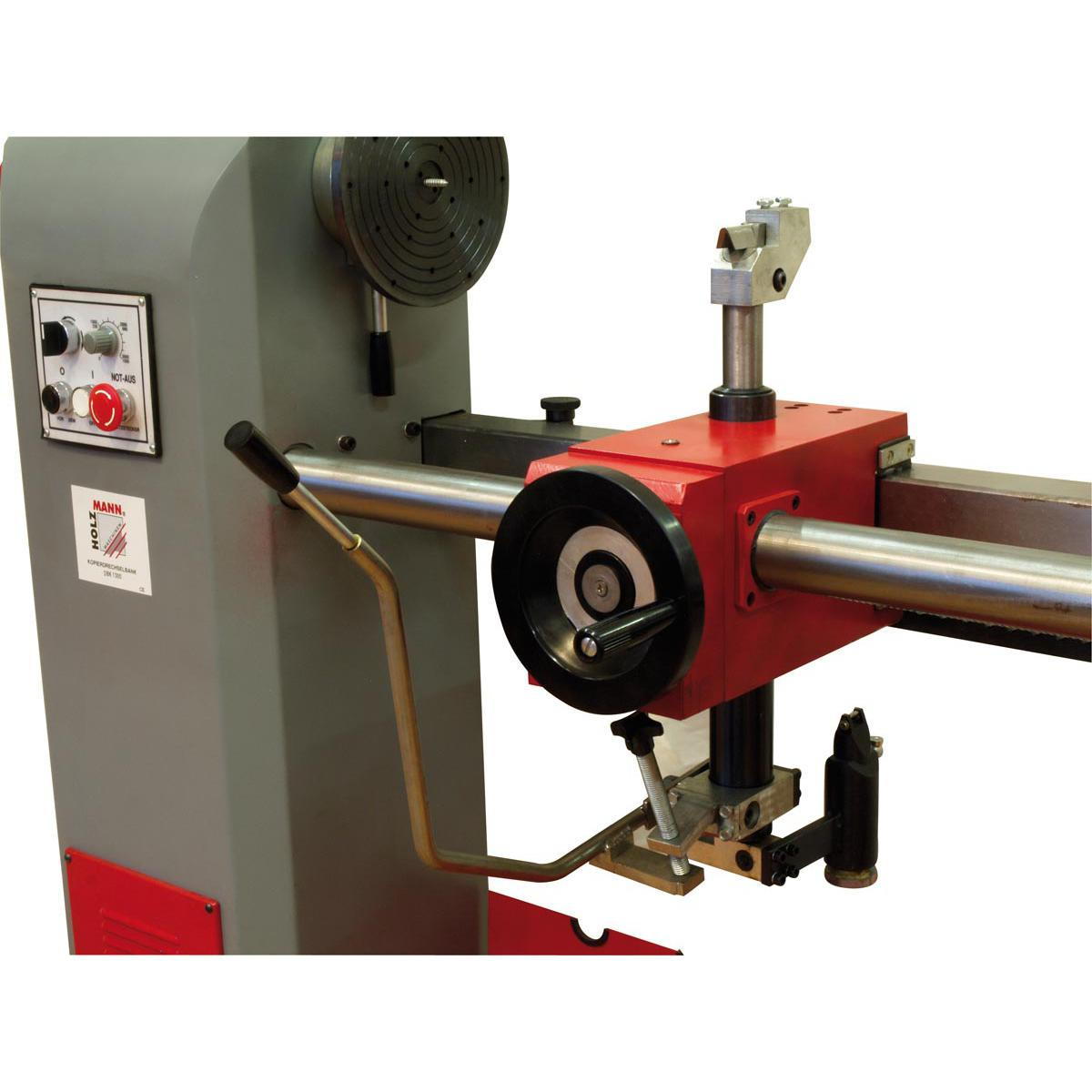

– long tool rest with quick clamp system and stepless height adjustment
– various accessories included in delivery
– included in delivery: face plate 220mm, screw chuck, grab chuck 40mm, drill chuck 3-16mm, arbor B16-MT2, life centre MT2, tool rest, steady rest, copying device
technical details:
motor data:
voltage: 400V
motor power s1 in W: 1100
motor power s6 in W: 1500
turning machines:
tailstock sleeve travel: 100
copying center height in mm: 65
max. copy depth in mm: 50
max. copy length in mm: 1100
distance between centers in mm: 1300
center height in mm: 220
lathe spindle speed in min-1: 2800/1950/1000/500
tailstock cone: MK2/MT2
head stock spindle: M33
weight:
gross weight in kg: 228
net weight in kg: 202
packaging:
length in mm: 2.120
width in mm: 490
height in mm: 1.230
general data:
EAN code: 9120039901992
