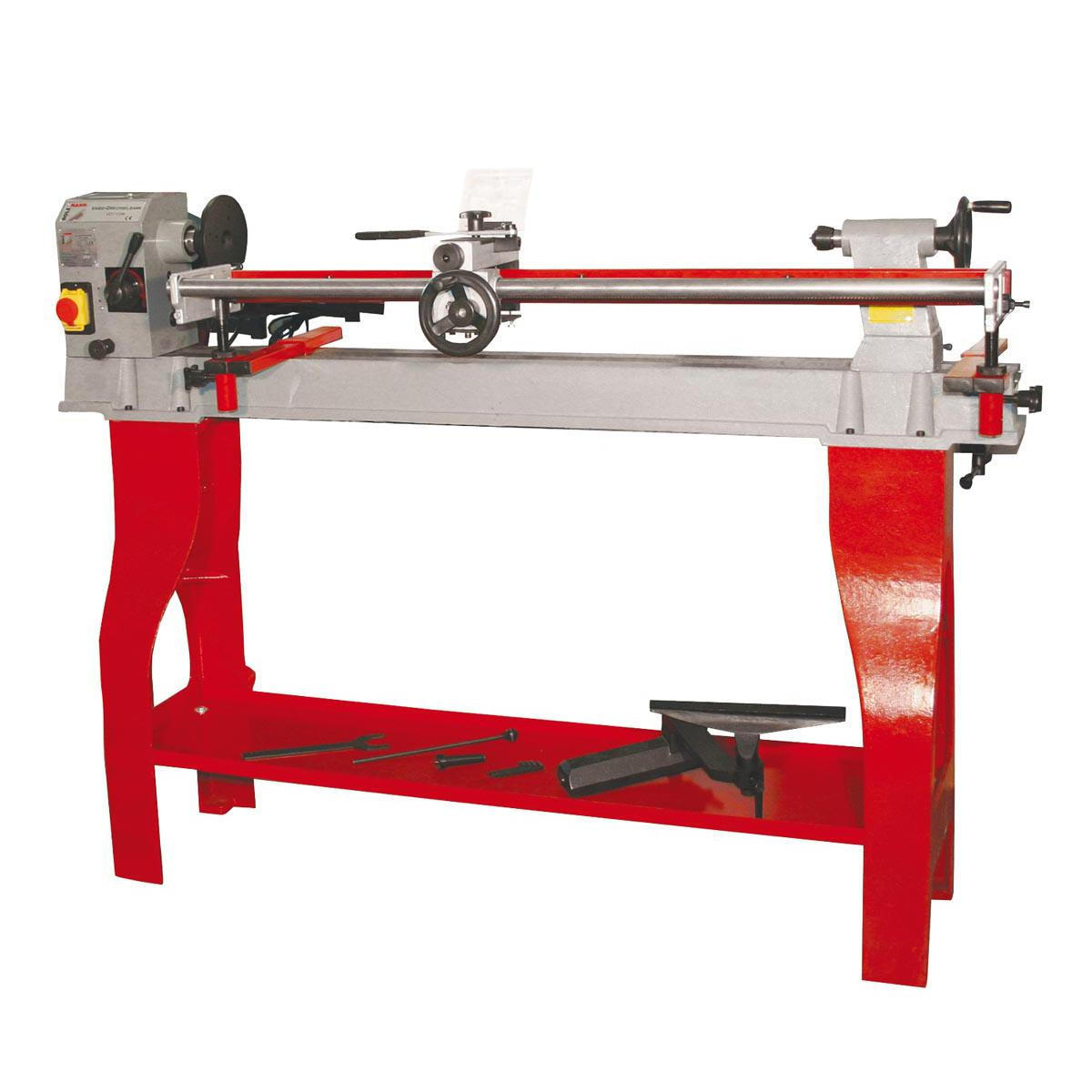

Ξυλότορνος με αντιγραφικό VD1100N διατίθεται σε 220V και 380V.Αυστριακής προέλευσης.
Συναρμολόγηση-Τεχνική υποστήριξη,ανταλλακτικά απο το έμπειρο προσωπικό μας.
| highlights: – grey cast iron machine bed, stand, tail stock and head stock – head stock can be turned – copying device options: from master work piece or pattern – max. copying length 1000mm – tail stock 90° pivotable for big turning diameters – MT2 tail stock – quick adjustment for tail stock and head stock – large face plate – included in delivery: stand, 4-side grab chuck, ball-bearing life centre, faceplate, several tools, copy attachment, tool rest technical details: motor data: voltage: 400V motor power s1 in W: 750 motor power s6 in W: 1100 measurements: table height in mm: 900 turning machines: tailstock sleeve travel: 60 copying center height in mm: 80 lathe spindle speed in min-1: 500-2000 tailstock cone: MK2/MT2 center height in mm: 185 distance between centers in mm: 1100 head stock spindle: M33 DIN800 spindle bore in mm: 12 weight: gross weight in kg: 149 net weight in kg: 119 packaging: length in mm: 1.620 width in mm: 340 height in mm: 430 general data: EAN code: 9120039900575 |
